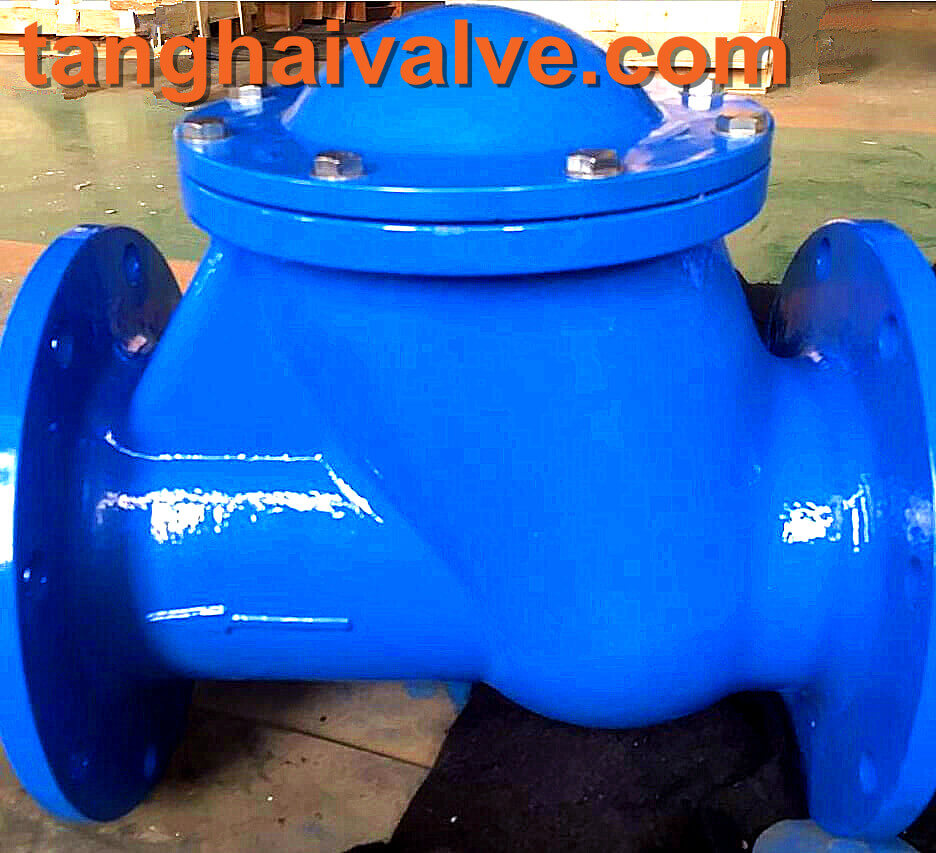

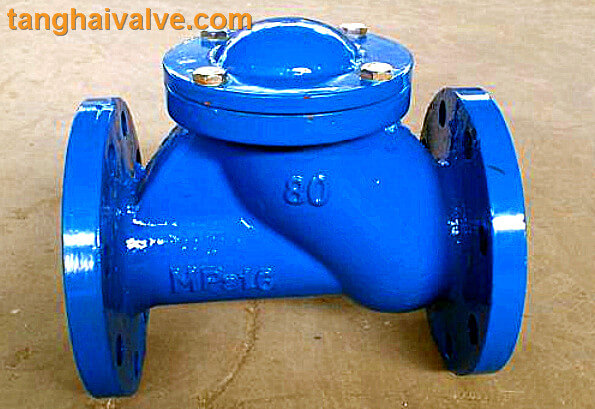

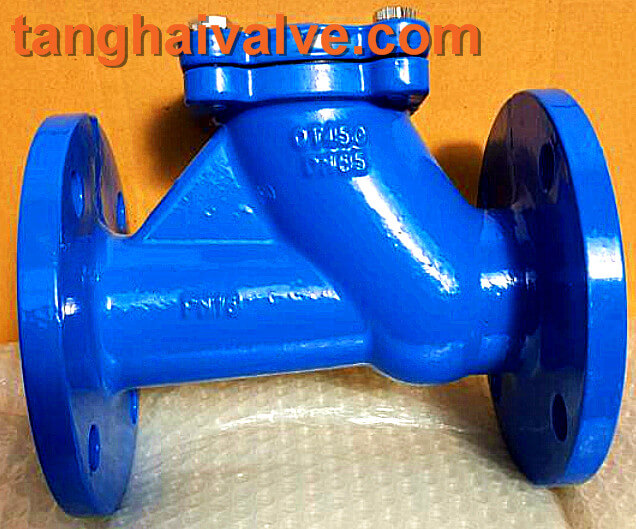

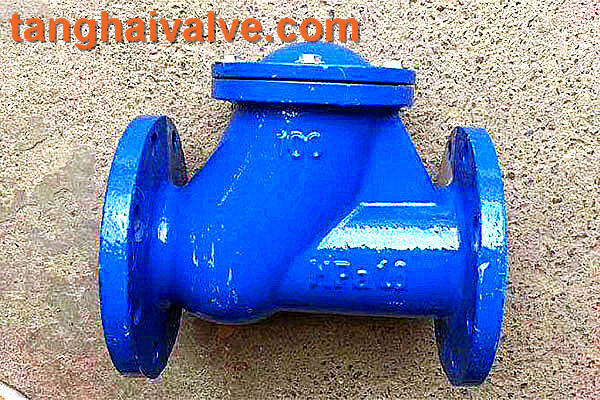

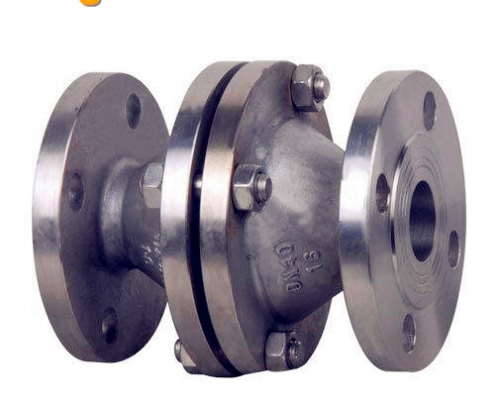

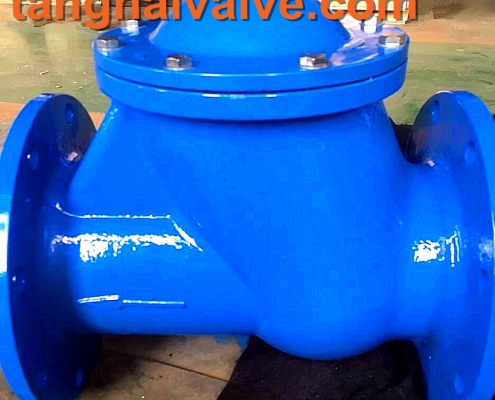

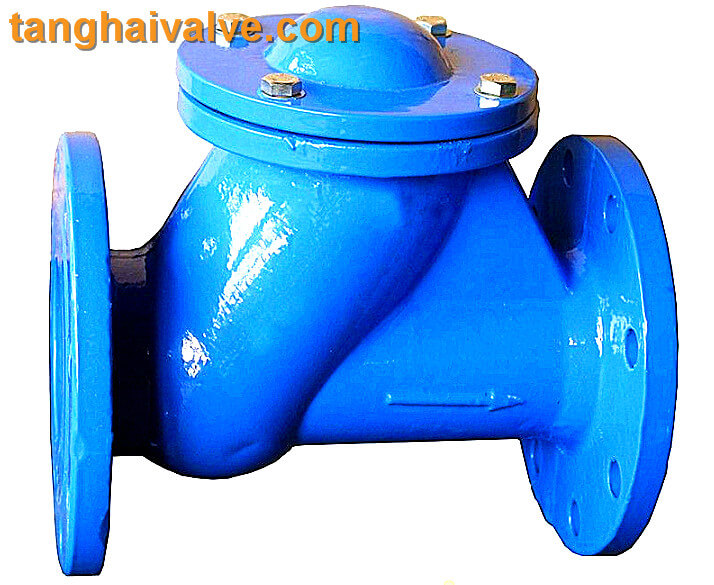

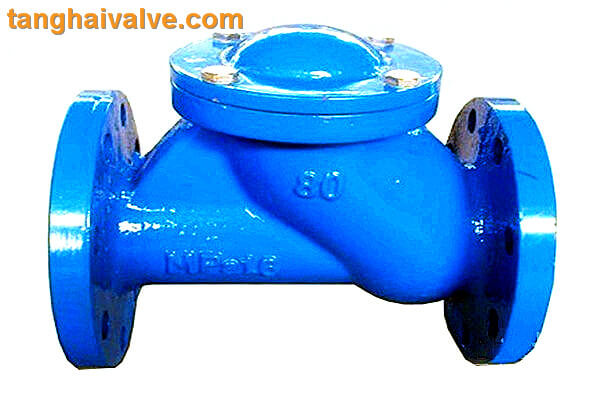

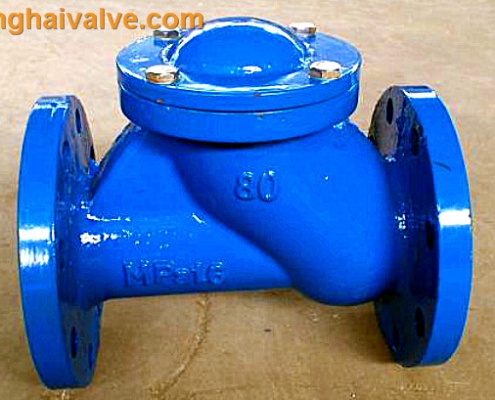

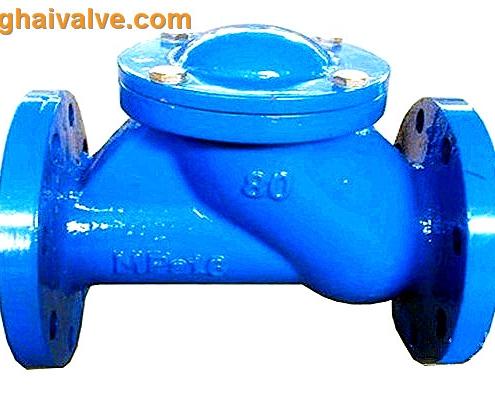

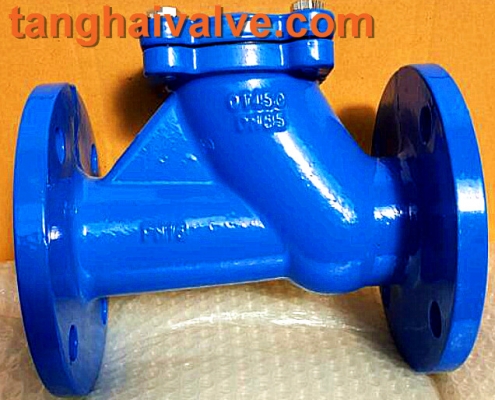

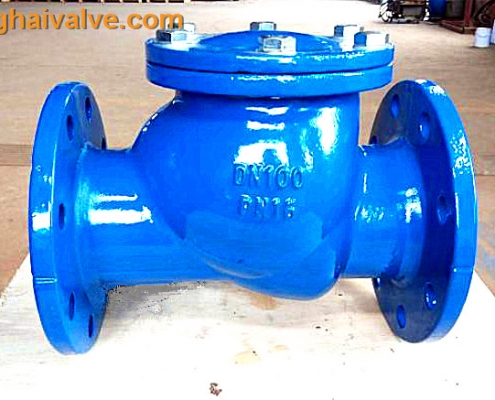

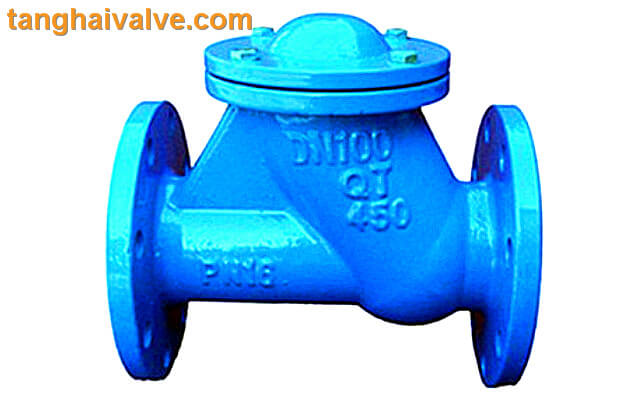

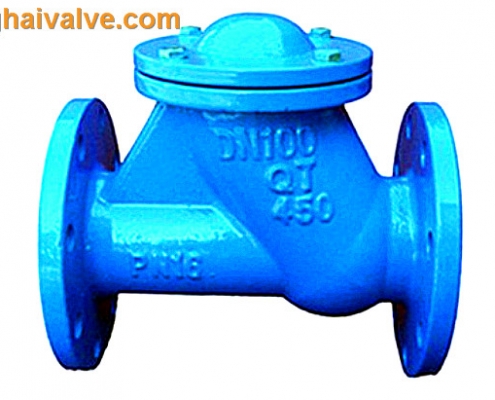

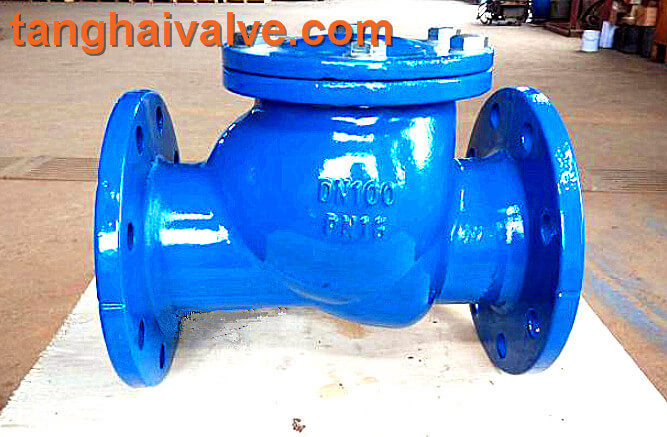

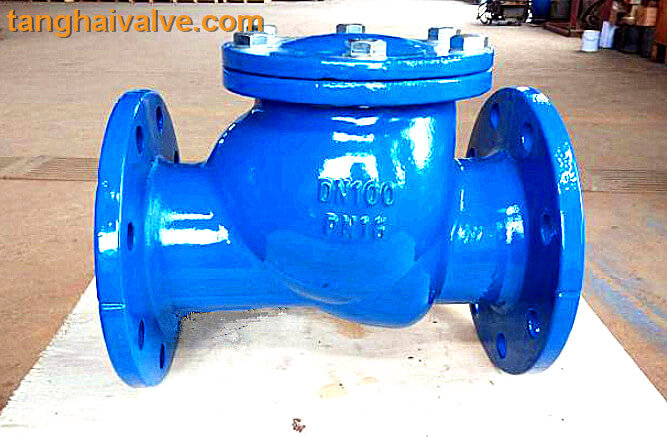

Ball check valve (TH-CKV-BA)
Area of application
Water supply and drainage, water treatment, fire-fighting and other systems
Data sheet of ball check valve:
Type: | Wafer, double flange |
---|---|
Size & Connections: | DN40 to D400 |
Medium: | Waste water, Water, Seawater, Air, Inert Gas, Oil. |
Materials: | Cast Iron / Ductile Iron/ Carbon Steel / Stainless Steel / Alu Bronze |
Pressure Rating: | PN10, PN16 |
Temperature: | -30°C to 200°C |
Seat/Lining: | Replaceable Liner / Bonded Liner NBR/EPDM/VITON |
Certificates & Approvals: | DNV-GL, Lloyds, DNV, ABS, BV Type Approval 3.1 & 3.2 Cert (on request) |
Standards
Design: API594, DIN3202, DN1074-3
Inspection &Test: API 598
Face to Face: API594, DIN3202, EN558-1
Flanges: EN 1092-2, DIN2532,PN10/16
Hydraulic test to ISO 5208
Seat Test Pressure: 11bar, 17.6 bar
Shell Test Pressure: 15bar, 24 bar
Operating Torque Test
Material of ball check valve Parts
Part name | Material |
---|---|
Body | Cast Iron; Ductile Iron; Carbon steel |
Ball fload | CI/DI/WCB + NBR/EPDM/PTFE |
Gasket | NBR/EPDM/PTFE |
Bonnet | CI/DI/WCB |
Bolts | A2/Carbon steel |
Washer | WCB /Stainless steel |
Ball check valve features
- Large flow rate, small flow resistance pressure loss,
- The sealing performance is very good, no noise when closing, which can reduce the water shock wave.
- Can be installed horizontally or vertically.
- It can be used for pump outlets of cold water, hot water, industrial and domestic sewage network to prevent backflow of media.
- All the equipment, devices and pipelinesshould install check valves, In order to prevent backflow of media
