Tilting disc swing check valve (TH-CKV-TDS)

Marine industry, Water supply and drainage, fire fighting, shipbuilding, water treatment and other systems, DN50 to D600, NBR/EPDM/VITON, Certificates & Approvals: DNV-GL, Lloyds, DNV, ABS, BV, Standards: EN 593,  API609

FEEDBACK

1 + 2 = ?

Tilting disc swing check valve  (TH-CKV-TDS)

Area of application

Water supply and drainage, water treatment, fire-fighting and other systems

Data sheet of Tilting disc check valve:

Type:Wafer, double flange
Size & Connections:DN50 to D600
Medium:Air, Inert Gas, Oil, Seawater, Waste water, Water
Materials:Cast Iron / Ductile Iron/ Carbon Steel / Stainless
Steel / Alu Bronze
Pressure Rating:PN10, PN16
Temperature:-30°C to 200°C
Seat/Lining: Replaceable Liner / Bonded Liner
NBR/EPDM/VITON
Certificates & Approvals: DNV-GL, Lloyds, DNV, ABS, BV Type Approval
3.1 & 3.2 Cert (on request)

Standards

  • Design and Manufacture Conform to API 594
  • Dimensions Conform to ANSI B16.5
  • Face to Face dimensions Conform to API 594
  • Testing Conform to API598

Material of Tilting disc swing check valve Parts

Part nameMaterial
BodyCast Iron; Ductile Iron; Stainless Steel; Carbon steel
Disc / PlateStainless Steel; Carbon steel; Bronze
Shaft / stemStainless Steel Monel; Stainless Steel Inconel
Seat / liningNBR/EPDM/VITON
BoltsCarbon steel
NutsStainless steel

Tilting disc swing check valve features

  •  Double eccentric discs, when closing, the valve contacts the sealing surface gradually, so that it can work without impact and noise.
  • Micro-elastic metal valve seat, good sealing performance.
  • Butterfly valve design, quick and sensitive switching, and long lifetime.
  • The swash-plate structure makes the fluid channel to be streamlined, with small flow resistance and energy saving effect.
  • Check valves are generally suitable for clean media, and should not be used for media containing solid particles and high viscosity.
  • Easy maintenance, replaceable valve seat ring,
  • Adjustable valve body can be stopped to achieve full stroke and positive closure without damage
  • Integral lifting handle makes maintenance easier

Related types of check valves:

We have other types of check valves: single-disc swing check valve, dual plate check valvelift swing check valve, silent check valve, ball check valve used in Oil, Gas, Marine industry, Water supply and drainage, fire fighting, shipbuilding, water treatment and other systems, with Nominal Diameter of DN50 to DN1200, NBR/EPDM/VITON, Certificates & Approvals: DNV-GL, Lloyds, DNV, BV, API, ABS, CCS. Standards: EN 593, API609, API6D,

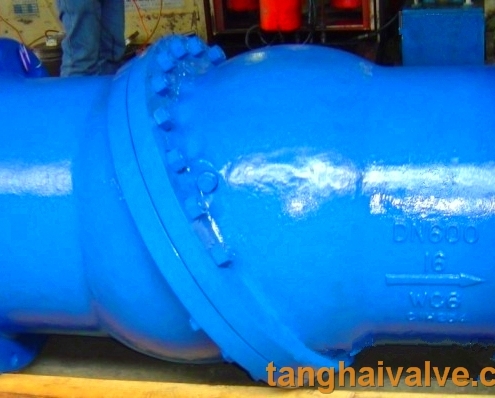

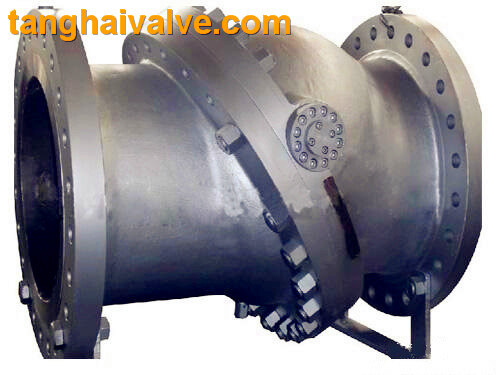

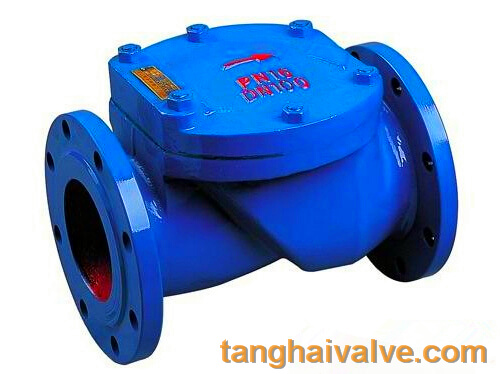

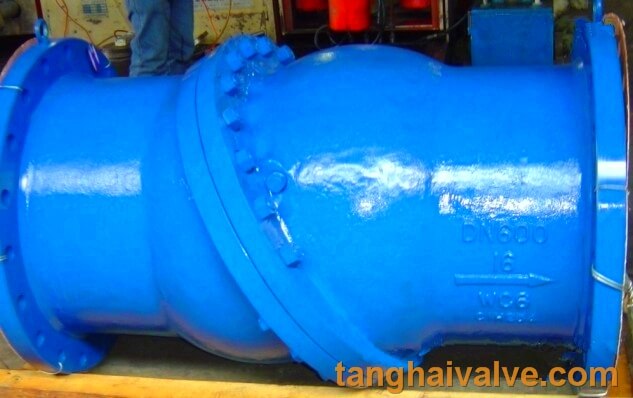

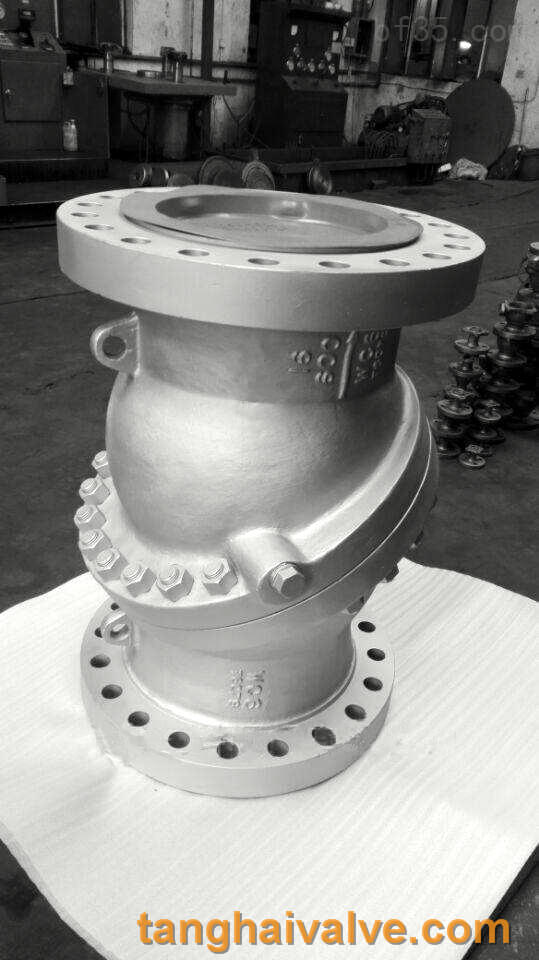

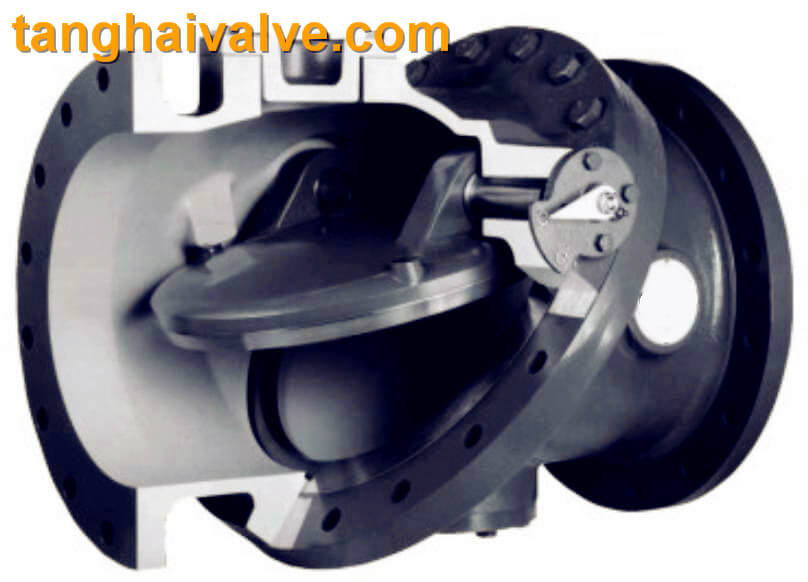

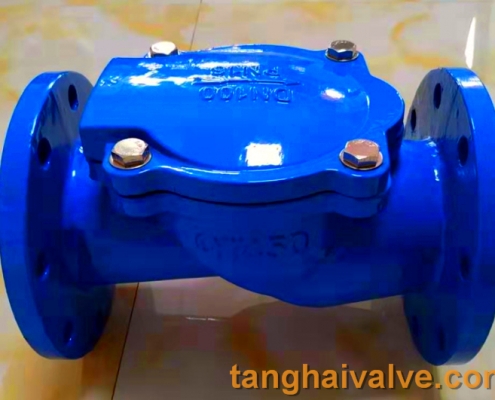

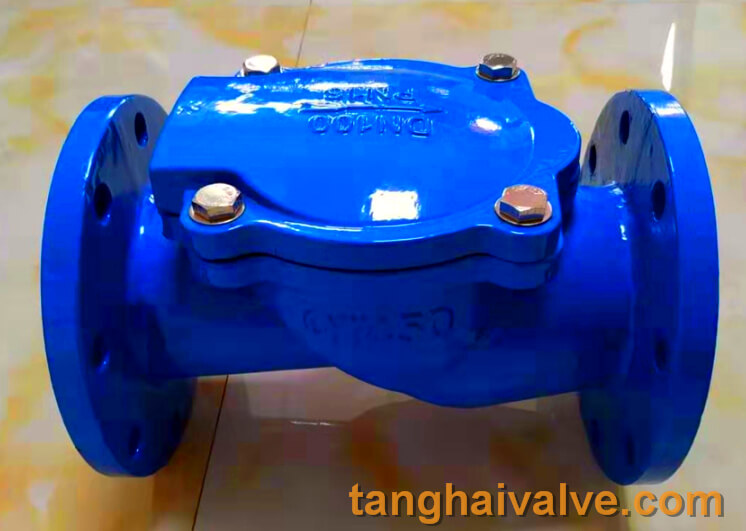

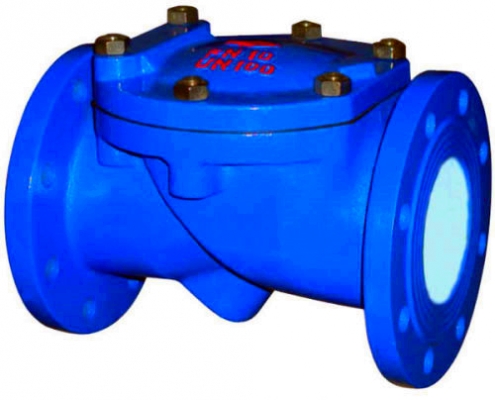

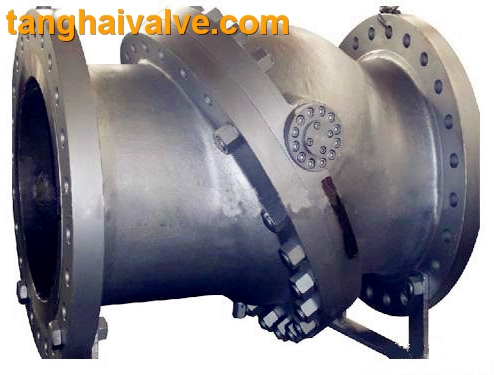

Tilting disc swing check valve Photos
