Double eccentric High performance butterfly valve (TH-BTV-DE)

High performance-Double offset-butterfly valve: Petrochemical, metallurgy, electric power, mechanical equipment, urban pipe network, water treatment, etc. DN40 to D1200, NBR/EPDM/VITON, PTFE, Certificates & Approvals: DNV-GL, Lloyds, DNV, ABS, BV, Standards: EN 593,  API609

FEEDBACK

1 + 3 = ?

Double eccentric butterfly valve (TH-BTV-DE)

Area of application

Petrochemical, metallurgy, electric power, mechanical equipment, urban pipe network, water treatment, etc.

Data sheet of Double eccentric Butterfly valve

Type:Double eccentric, Wafer, Lug, Double flange, Welded
Size & Connections:DN40 to D1200
Medium:Air, Inert Gas, Oil, Seawater, Waste water, Water
Materials:Cast Iron / Ductile Iron/ Carbon Steel / Stainless
Steel / Alu Bronze
Pressure Rating:PN10/16, Class 150/300
Temperature:-30°C to 200°C
Seat/Lining: Replaceable / Bonded /vulcanized Liner
NBR/EPDM/VITON, full lined PTFE/PFA
Certificates & Approvals: DNV-GL, Lloyds, DNV, ABS, BV Type Approval
3.1 & 3.2 Cert (on request)

Standards

  • Design and Manufacture Conform to EN 593、 API609
  • Flange dimensions Conform to EN2632
  • Face to Face dimensions Conform to DIN3202 F4
  • Topwork’s dimensions Conform to ISO5211
  • Testing Conform to ISO5208

Material of Parts

Part nameMaterial
BodyASTM A536 65-45-12/ASTM A126 B, EN-JL 1040 (GG-25), EN-JS 1030 (GGG-40), EN-JS 1049 (GGG 40.3), Stainless steel (1.4408), Alu-Bronze
Disc / PlateDI+NI,CF8/CF8M,C954/C958
EN-JS 1030 (GGG-40)
Stainless steel (1.4408)
Shaft / stemSS431/SS420/SS410/SS304/SS316
Seat / liningNBR/EPDM/VITON /PTFE/PFA
Taper pinsSS416/SS316
BushingBRASS/PTFE
O-ringNBR/EPDM/VITON /PTFE
KeySTEEL

Actuation

  • Worm-gear/hand-wheel
  • Electric-actuator
  • Pneumatic-actuator
  • Hydraulic-actuator

Double offset high performance butterfly valve features:

1.Double eccentric butterfly valve is also called high-performance butterfly valve, which is mainly used for water drainage in water plants, power plants, steel smelting, chemical industry, water source engineering, environmental facilities construction, etc.

2. Fire-proof structure

Fire-proof valve is tested to API 607 4th Edition and BS 6755 Part II

3. Fixed Stem

Fixed collar is installed in the top of axis, 2″-24″(DN50-600), when axis breaks accident, avoid the upper part to move out of gland.

4. Provide CE marked versions available

CE marked and documented valves that conform to the European Pressure Equipment Directive (PED) 97/23/EC are available in ANSI Class 150/ 300, both standard and Fire-Tight construction. Operating torques, construction potions and valve dimensions are exactly the same as the standard ANSI 150/300 offering.

5. Convenient to maintain and upkeep valve seats

Replace axis only by taking inserts down, without disassembling disc and axis.

6. Excellent for both On-Off and Control Application

  • Superior control characteristics.
  • Inherent flow characteristic is modified equal percentage.
  • Wide range
  • Tight shut-off even in control applications.
  • Standard lugged style valves are suitable for bidirectional dead-end service at the full pressure temperature rating of the valve

7.Single-Source Responsibility

  • Purchase valves, actuators, and accessories, completely mounted from one source.
  • Available with electric, manual gear, and pneumatic double acting or spring return actuators and a variety of accessories including limit switch, solenoids, and positioners.
  • OEM service available through world-wide service centers.

8. Available in a Wide Choice of Material for a Broad Range of Applications

Standard body materials include ductile iron, aluminium bronze, carbon steel, stainless steel, Monel, Alloy 20. Users can also, according to requirements, select other materials.

Related types of butterfly valves:

We have other types of butterfly valves: wafer butterfly vlave, Lug type butterfly valve, U flange butterfly valve, double flange butterfly valve, fluorine lined PTFE butterfly valve, and triple eccentric butterfly valves  used in Marine industry, Water supply and drainage, fire fighting, shipbuilding, water treatment and other systems, with Nominal Diameter of DN50 to DN1200, NBR/EPDM/VITON, Certificates & Approvals: DNV-GL, Lloyds, DNV, BV, API, ABS, CCS. Standards: EN 593, API609, API6D,

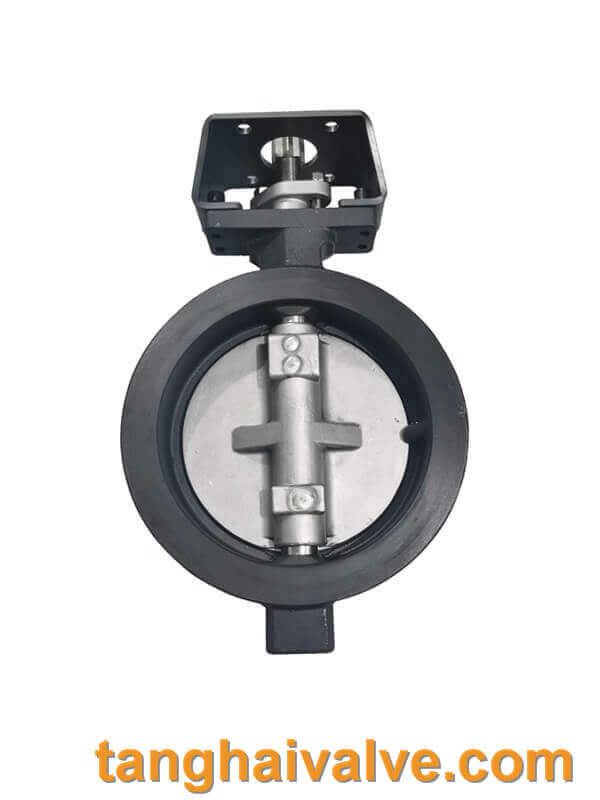

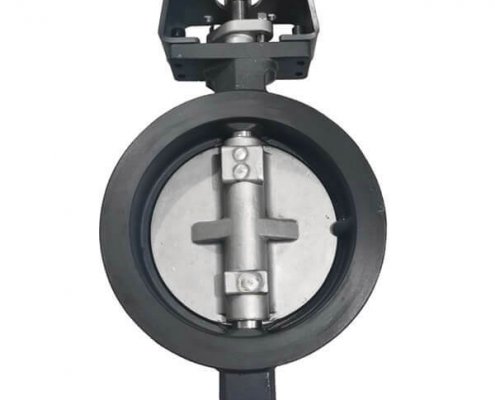

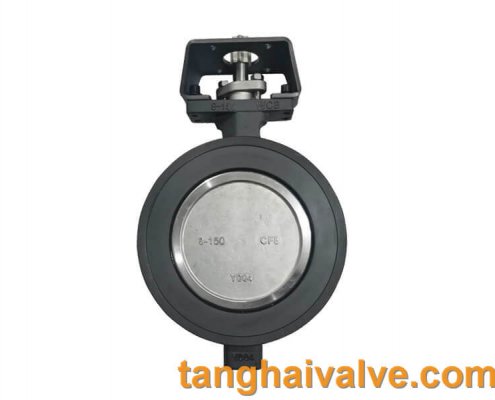

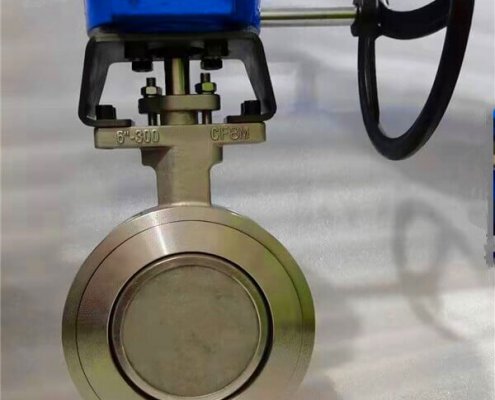

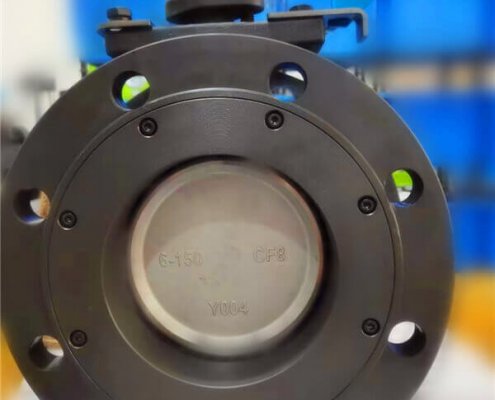

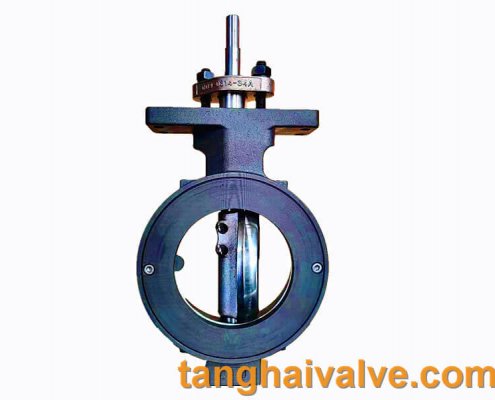

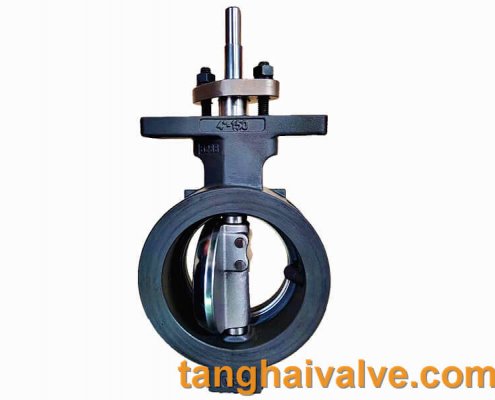

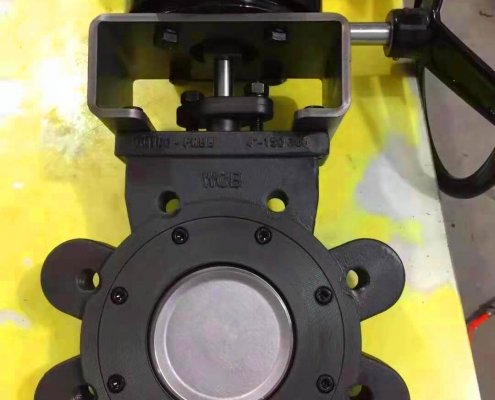

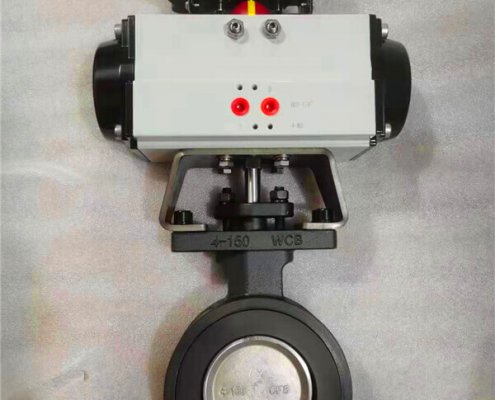

Double eccentric butterfly valve Photos

RELATED PRODUCTS

Wafer type butterfly valve with worm geartanghaivalve.com

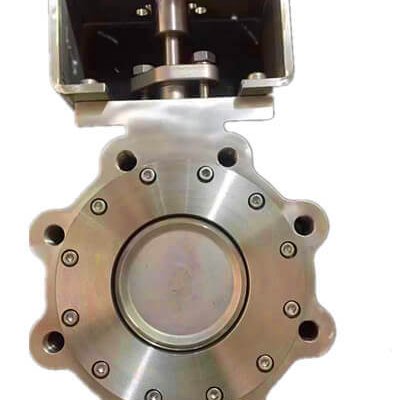

lug type buttefly valvetanghaivalve.com
U type flange butterfly valve (11)tanghaivalve.com
Double flange butterfly valve (7)tanghaivalve.com
Fluorine lined butterfly valve-PTFE-WAFER (1)tanghaivalve.com

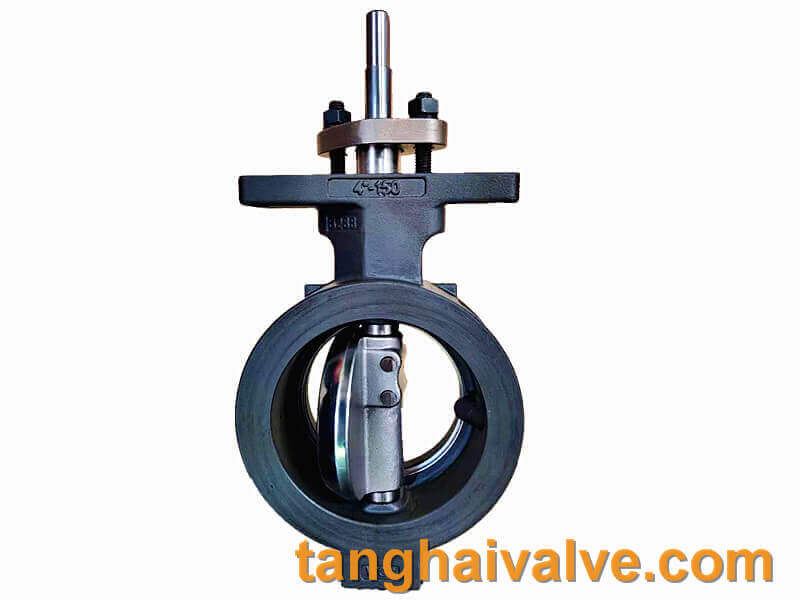

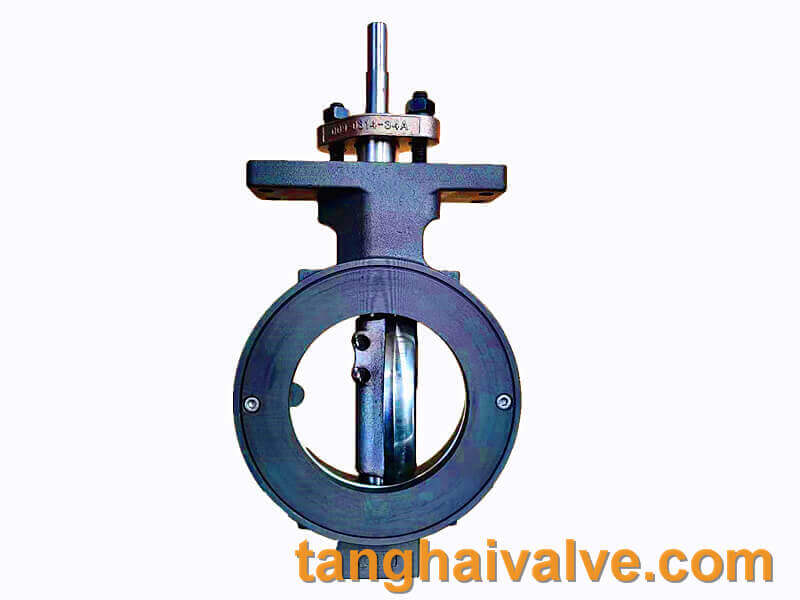

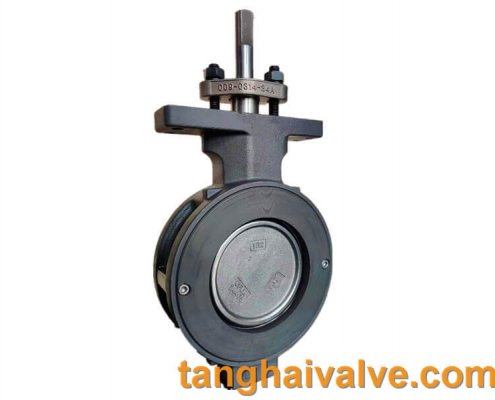

high performance-double offset-wafer type-butterlfy valve-metal seated (5)
