Silent check valve (TH-CKV-SLT)

Area of application

Water supply and drainage, water treatment, fire-fighting and other systems

Data sheet of Silent check valve:

Type:Wafer, double flange
Size & Connections:DN50 to D600
Medium:Waste water, Water, seawater…
Materials:Cast Iron / Ductile Iron/ Carbon Steel / Stainless
Steel / Alu Bronze
Pressure Rating:PN10, PN16
Temperature:-30°C to 200°C
Seat/Lining: Replaceable Liner / Bonded Liner
NBR/EPDM/VITON
Certificates & Approvals: DNV-GL, Lloyds, DNV, ABS, BV Type Approval
3.1 & 3.2 Cert (on request)

Standards

  • Design and Manufacture Conform to API 594
  • Dimensions Conform to ANSI B16.5
  • Face to Face dimensions Conform to API 594
  • Testing Conform to API598

Material of Silent check valve Parts

Part nameMaterial
BodyCast Iron; Ductile Iron; Stainless Steel; Carbon steel
Disc / PlateStainless Steel; Carbon steel; Bronze
Shaft / stemStainless Steel Monel; Stainless Steel Inconel
Seat / liningNBR/EPDM/VITON
BoltsCarbon steel
NutsStainless steel
SpringSS304/SS306

Silent check valve features

  • It can be installed vertically or horizontally, the valve flap is flexible to open and close, and it runs smoothly, with low closing noise, safety, and few faults
  • The valve flap is spring loaded, and its rapid closing can effectively reduce the water hammer pressure and the sealing performance is good
  • It has small size, light weight, small fluid resistance, fatigue resistance and long service life.

Related types of check valves:

We have other types of check valves: single-disc swing check valve, dual plate check valve, tilting disc swing check valve, lift swing check valve, ball check valve used in Oil, Gas, Marine industry, Water supply and drainage, fire fighting, shipbuilding, water treatment and other systems, with Nominal Diameter of DN50 to DN1200, NBR/EPDM/VITON, Certificates & Approvals: DNV-GL, Lloyds, DNV, BV, API, ABS, CCS. Standards: EN 593, API609, API6D,

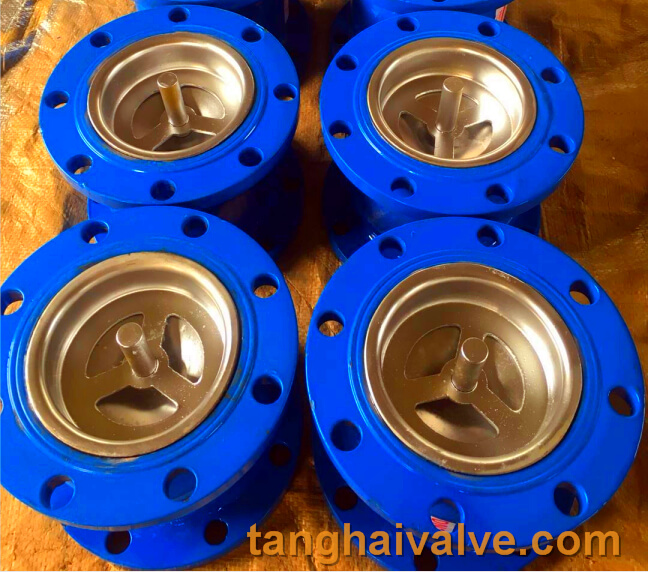

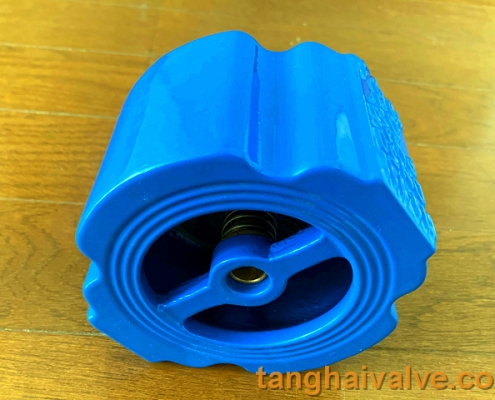

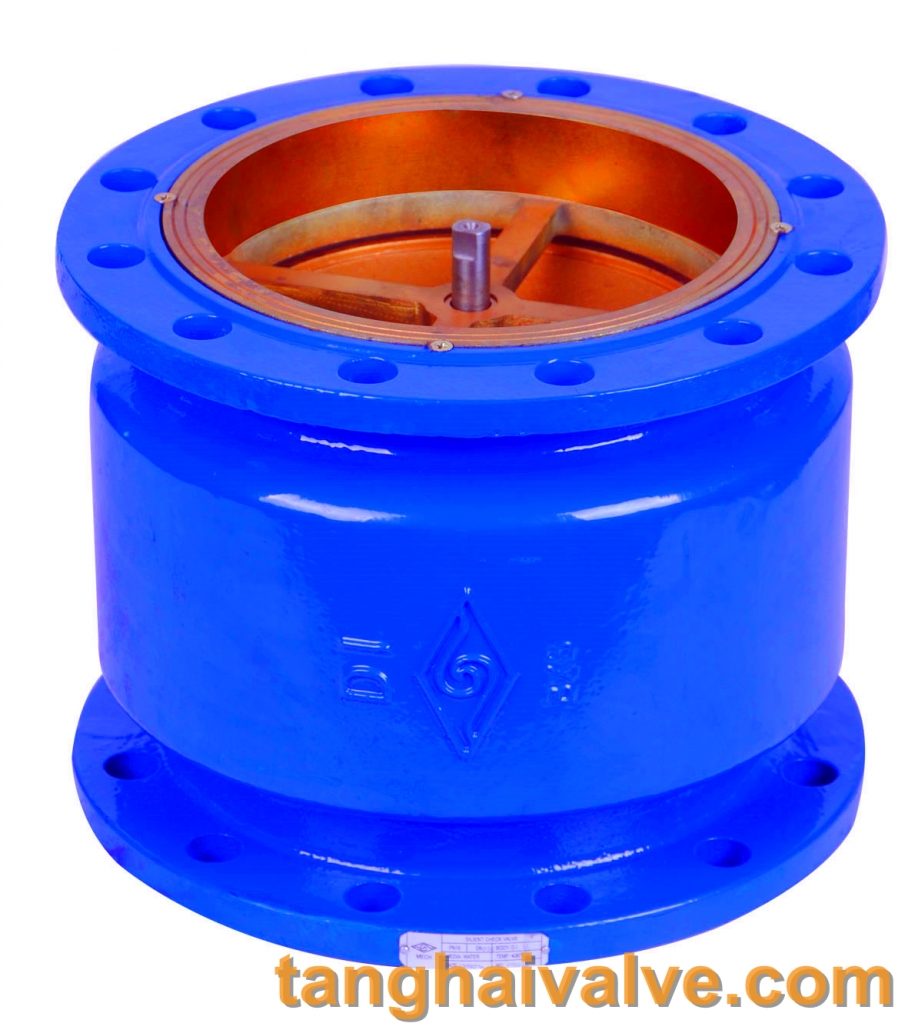

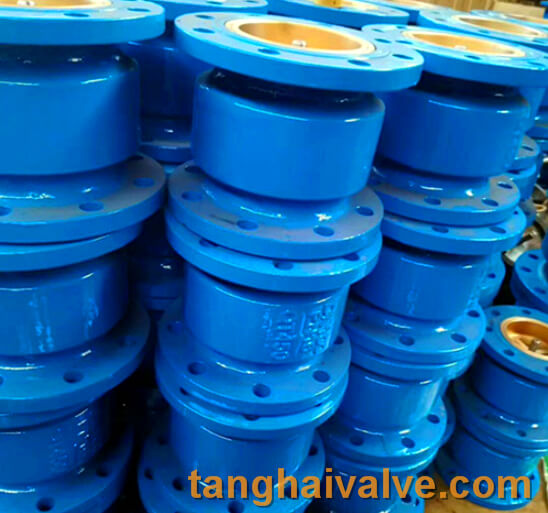

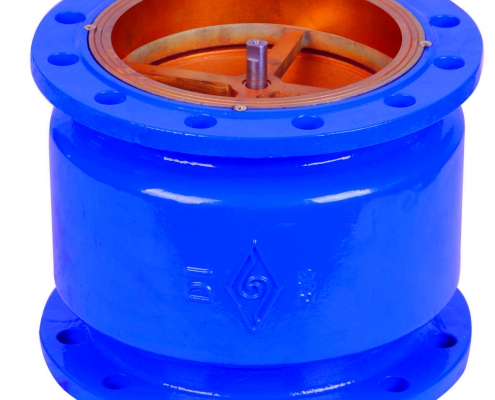

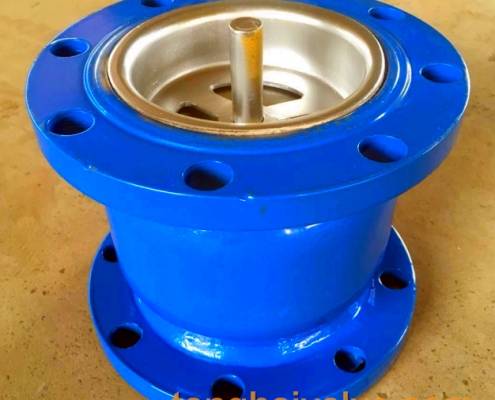

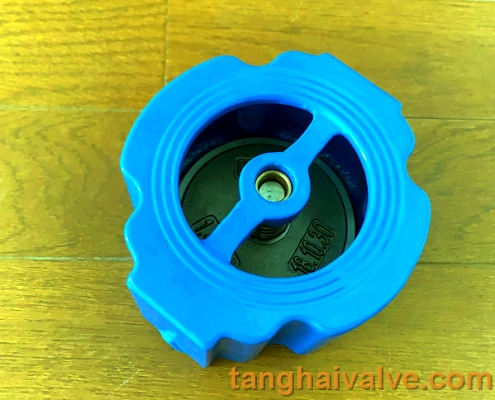

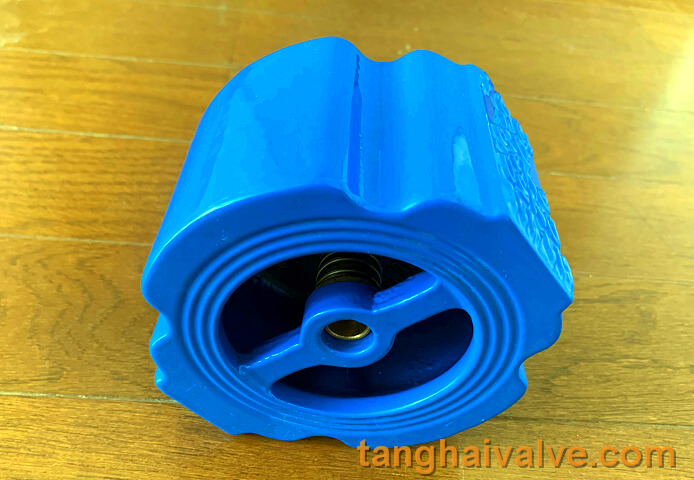

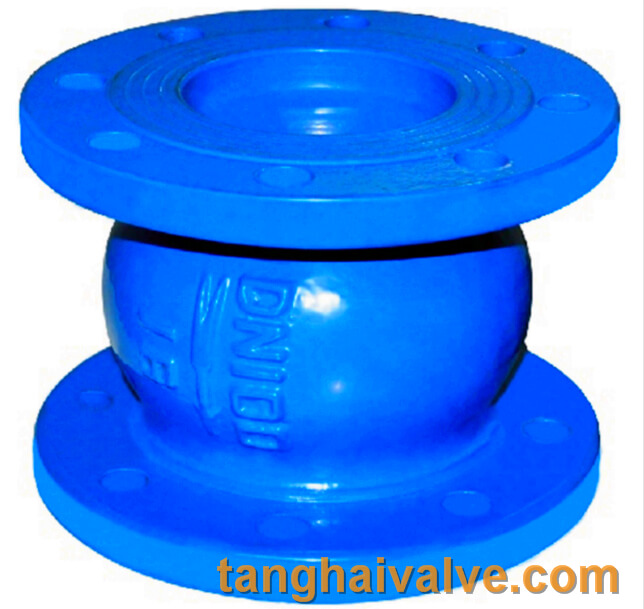

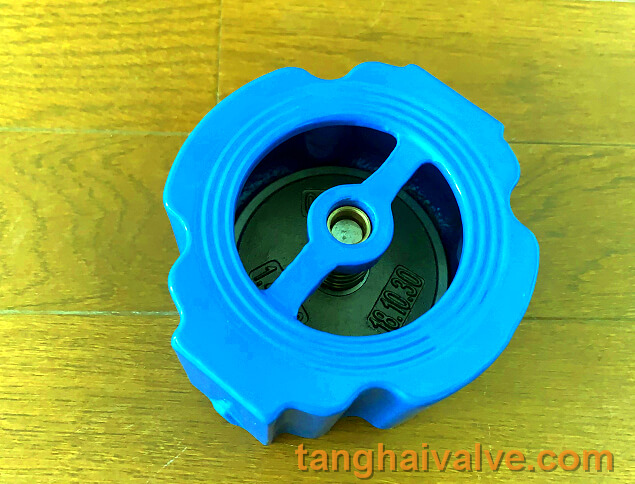

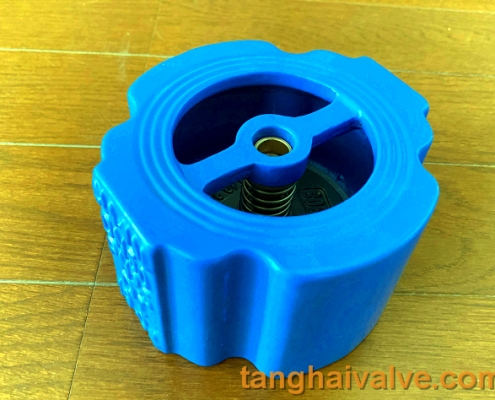

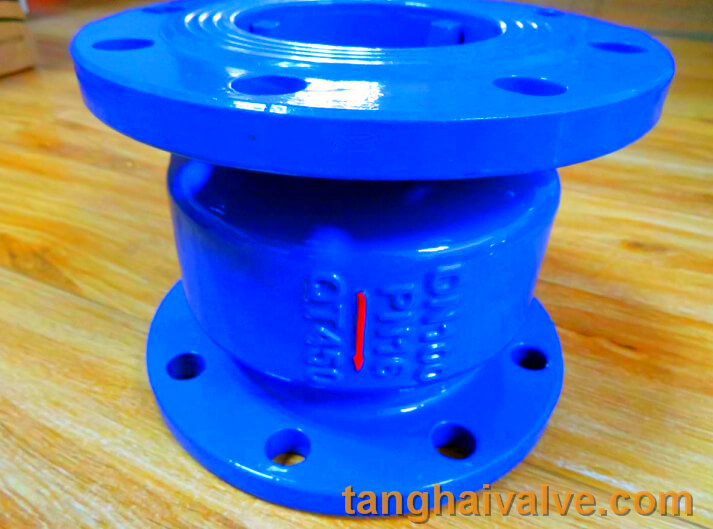

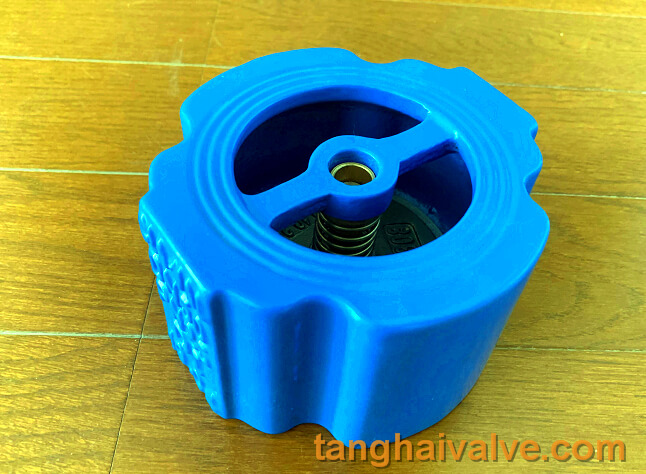

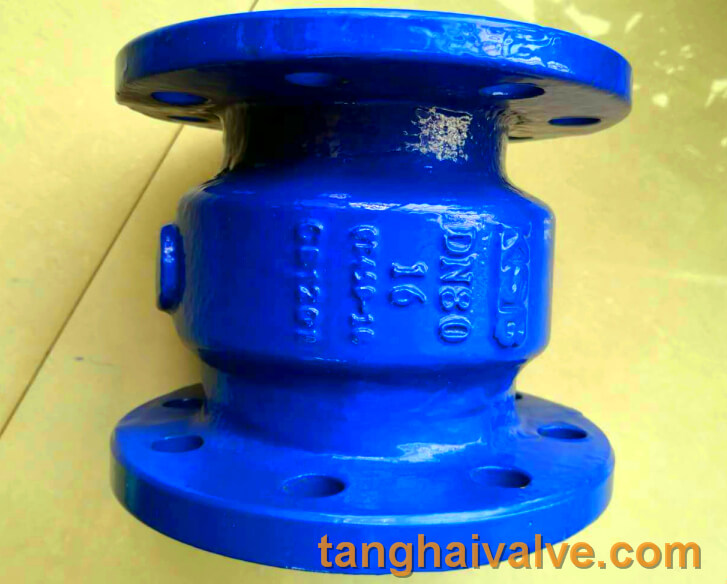

Silent check valve Photos
